Quick Details

  • Type: Gps Tracker
  • Use: Automotive
  • Screen Size: No
  • Function: Camera,RFID,Handset,LCD display
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Meitrack
  • Model Number: T333
  • Warranty: 12 Months
  • Dimension: 105 mm x 65 mm x 26 mm
  • Weight: 190g
  • Power supply: DC 11-36 V/1.5 A
  • Backup battery: 850 mAh/3.7 V
  • Power consumption: Current in standby mode: 8mA
  • Sensor: 3-axis accelerometer
  • Memory: 8 MB buffer
  • GPS sensitivity: -161 dB
  • Positioning accuracy: 2.5m
  • Certificate: CE,RoHS

Packaging & Delivery

Packaging Details Box Size: 159x134x89mm
G/W: 1kg per box
Delivery Time Shipped in 3 days after payment
PRODUCT OVERVIEW

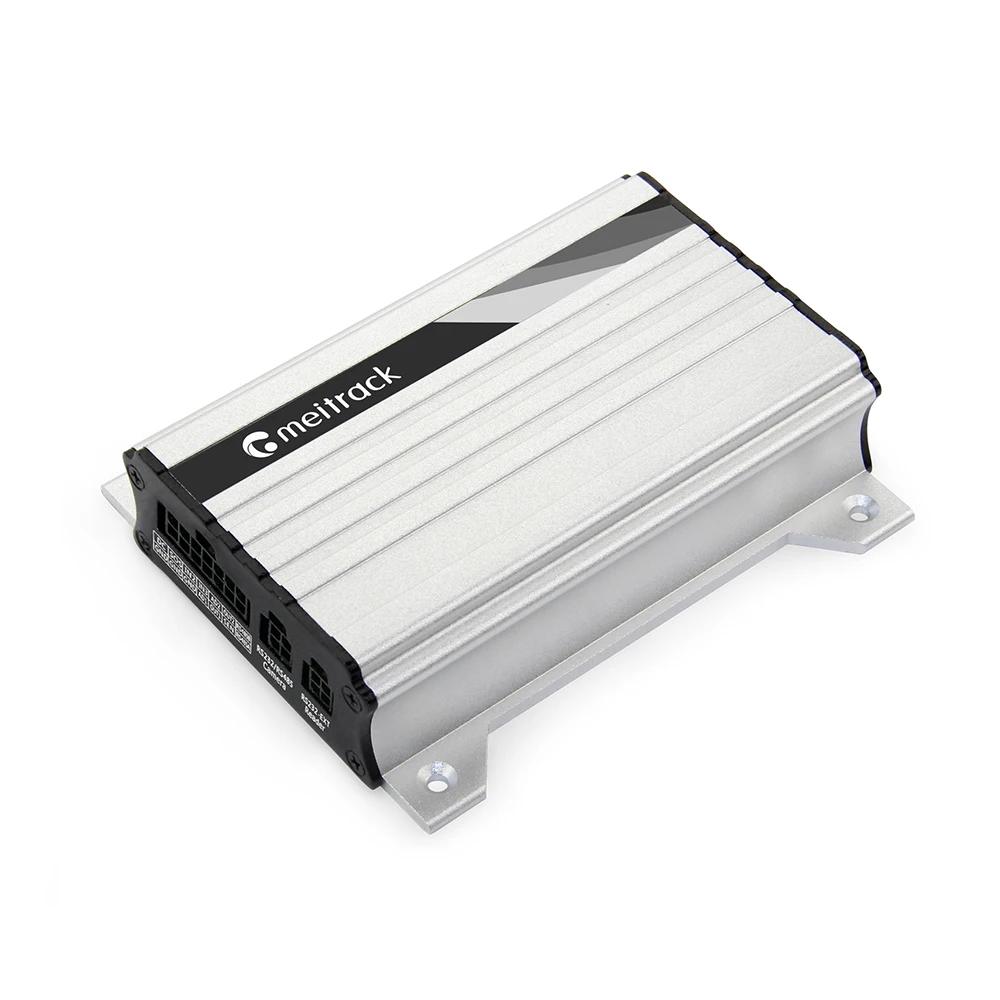

Meitrack T333


Multifunctional Vehicle GPS Tracker


The T333 is a brand new 3G vehicle tracker. In addition to real-time tracking, the T333 has two-way calling and remote listen-in functions. The T333 provides excellent and stable performance in vehicle tracking and fleet management.



FEATURES



Tire Pressure Monitoring
Fully integrated for tire pressure monitoring system to enhance safety of your fleet.
CAN bus interface
Compatible with Inventure CAN bus interface which can read CAN data of various vehicle models.
Multifunctional
Support camera, RFID, LCD/LED display, fuel/temperature sensor and iButton driver ID.

Multiple alerts & reports
Support speeding/towing/geo-fence alerts, cornering/mileage reports etc.



APPLICATIONS





SPECIFICATIONS



Dimension105 mm x 65 mm x 26 mmWeight190g
Power supplyDC 11–36 V/1.5 ABackup battery850 mAh/3.7 V
Power consumptionCurrent in standby mode: 8mAOperating temperature-20°C to 55°C
Operating humidity5% to 95%Working hour

100 hours in power-saving mode

10 hours in normal mode

LED indicatorGreen indicator showing the GSM signal
Blue indicator showing the GPS signal
Button/Switch1 SOS button (for sending SMSs or dialing), 1 power button
Memory8 MB bufferSensor3-axis accelerometer (used to wake the device up by vibration and
detect towing alarms)
Positioning accuracy2.5mGPS sensitivity-161 dB
Frequency band

T333-E: UMTS/HSDPA: 900/2100MHz, GSM/GPRS: 900/1800MHz

T333-A: UMTS/HSDPA: 850/1900MHz, GSM/GPRS: 850/900/1800/1900MHz

T333-T: UMTS/HSDPA: 850/2100MHz, GSM: 850/900/1800/1900MHz

Note: Select proper device according to the local frequency band

I/O port

3 digital inputs (2 negative inputs and 1 positive input)

2 analog detection inputs

3 outputs

1 RS232 port

1 USB port

1-Wire® iButton

1-Wire® temperature sensor



ACCESSORIES



AccesoriesT333 with a built-in batteryI/O cable + SOS buttonGPS antenna3G antenna
USB cableCD download card
Optional AccessoriesCameraiButtonHandsetLED display
Tire pressure sensorRFID readerA53 fuel level sensorA21 LCD display (dialing and SMS display)
A52 digital temperature sensor + A61 sensor box
CERTIFICATES





MEITRACK GPS TRACKING PLATFORM MS03

300+functions customizable

With self-owned sourcing code, we can customize almost every function for you.

Rebrandable

Place your own logo, login in from your own website, on our serve.

Account management

Unlimited authorization to your account and sub-account.

4 configuration methods

Use our professional software Meitrack manager, or use OTA by website/APP, or simply send a SMS.

Multi-screen monitoring

Manage your fleet from anywhere, PC, Laptop, or even on your mobile phone, you can do all three at the same time.

24/7 support
Provide worldwide after service in 24 hours, 7 days a week.

COMPANY OVERVIEW



      Since 2002.
      20,000m² state of the art manufacturing facility based in Shenzhen, China.
      Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
      Providing OEM&ODM service.
      Providing software development service.
      Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.



R & D CENTERS



FACTORY TOUR







GLOBAL NETWORK





STRATEGIC COOPERATION





DISTRIBUTION NETWORK



DISTRIBUTION WANTED


For details, welcome to visit http://www.meitrack.com
